Product Model

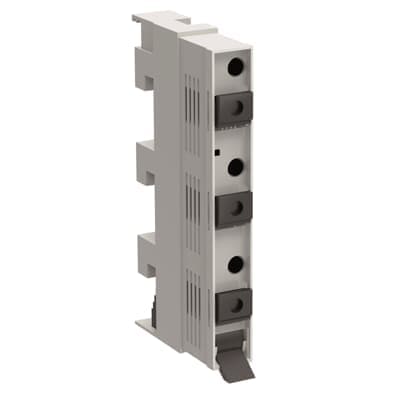

XLPD0-FS-E18-3P
Selling Points
- 1Fast and easy installation without tools.
- 2Comprehensive shock protection including a strip cover.
- 3High operational current of 63 A.
- 4Suitable for fuse links of size D01 and D02.
- 5Padlockable in OFF position (O) and sealable in ON position (1).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product Net Width | 27 mm | Product Net Height | 80 mm |
Product Net Depth / Length | 200 mm | Product Net Weight | 0.3 kg |
Device Type Manager (DTM) | Fusebase | Electronic Fuse Monitoring | No |
Fuse Size | D01 D02 | Fuse System | Neozed |
Handle Type | Handle Switch 3P | Mounting Type | 60mm Busbar System |
Number of Poles | 3P | Power Loss | at Rated Load 7 W |
Rated Conditional Short-Circuit Current (Inc) | (690 V) 50 kiloampere rms | Rated Current (In) | 63 A |
Rated Frequency (f) | Main Circuit 50 Hz | Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
Rated Operational Current AC-22B (Ie) | (400 V) 63 A | Rated Operational Voltage | 400 V AC |
Rated Voltage (Ur) | 400 V AC | Special Functions | Not Included |
Standards | IEC60947-3 | Terminal Type | Main Circuit: Bars |
Object Classification Code | S | ETIM 8 | EC000277 - D0-system switch disconnector |
ETIM 9 | EC000277 - D0-system switch disconnector | eClass | V11.1 : 27142110 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SEP622349R0001 |
Specifications may be subject to change without notice
