Product Model

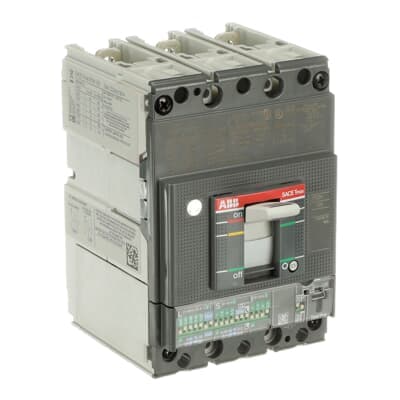

XT2H 125 Ekip LSI In=25A 3p F F UL/CSA
Selling Points
- 1High reliability and efficiency in electrical distribution.
- 2Compliant with UL and CSA standards for safety.
- 3Front terminal connection for easy installation.
- 4Solid-state release mechanism for quick tripping.
- 5Suitable for applications up to 25A and 690V AC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 9AKK108467A6707 | Product Net Width | 90 mm |
Product Net Height | 130 mm | Product Net Depth / Length | 82.5 mm |
Product Net Weight | 1.2 kg | Circuit Breaker Type to be Associated | Power Distribution |
Product Main Type | SACE Tmax XT | Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker | Suitable for Product Class | SACE Tmax XT |
Version | F | CAD Dimensional Drawing | 1SDH002230A1001 |
Connecting Capacity Main Circuit | Busbar 32.5..100 mm² | Current Type | AC |
Electrical Durability | 120 cycles per hour 8000 cycle | Mechanical Durability | 240 cycles per hour 25000 cycle |
Number of Poles | 3 | Opening Time | CB with SOR 15 ms CB with UVR 15 ms |
Order Multiple | 1 piece | Power Loss | at Rated Operating Conditions per Pole 0.80 W |
Rated Current (In) | 25 A | Rated Frequency (f) | 50/60 Hz |
Rated Insulation Voltage (Ui) | 1000 V AC | Rated Operational Voltage | 690 V AC |
Rated Uninterrupted Current (Iu) | 160 A | Rated Voltage (Ur) | 690 V AC |
Recommended Screw Driver | Main Circuit M6 | Release | Ekip LSI |
Release Type | EL | Short-Circuit Performance Level | H |
Standards | UL489 | Sub-type | XT2 |
Terminal Connection Type | Front | Terminal Type | Bolt |
Tightening Torque | 6 N·m | Interrupting Rating acc. to UL489 | (240 V AC) 150 A (480 V AC) 65 A (600 V AC) 25 A |
ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
IDEA Granular Category Code (IGCC) | 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers | Object Classification Code | Q |
UNSPSC | 39121616 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 | Manufacturer ID | 1SDA074971R1 |
Specifications may be subject to change without notice
