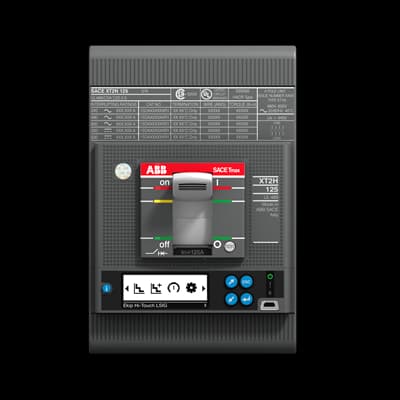

Product Model
XT2H 125 EkipMTouchLRIU(MPCB)100 3pFF UL
Selling Points
- 1Engineered for reliability and efficiency in industrial settings.
- 2Meets stringent UL standards for safety and performance.
- 3Ensures precise overload and short-circuit protection.
- 4Suitable for a variety of electrical configurations and applications.
- 5Designed to withstand 25000 operations at no load, ensuring extended service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 9AKK108467A6707 | Product Net Width | 90 mm |
Product Net Height | 130 mm | Product Net Depth / Length | 82.5 mm |
Product Net Weight | 9.7 kg | Circuit Breaker Type to be Associated | Motor Protection |
Product Main Type | SACE Tmax XT | Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker | Suitable for Product Class | SACE Tmax XT |
Version | F | CAD Dimensional Drawing | 1SDH001295R0155 |
Current Type | AC | Mechanical Durability | 240 cycles per hour 25000 cycle |
Number of Poles | 3P | Order Multiple | 1 piece |
Power Loss | at Rated Operating Conditions per Pole 4.2 W | Rated Current (In) | 100 A |
Rated Frequency (f) | 50 / 60 Hz | Rated Operational Voltage | 600 V AC 500 V DC |
Rated Uninterrupted Current (Iu) | 125 A | Release | Ekip M Touch LRIU |
Release Type | EL | Short-Circuit Performance Level | H |
Standards | UL489 | Sub-type | XT2 |
Terminal Connection Type | Front | Interrupting Rating acc. to UL489 | (240 V AC) 150 kA (480 V AC) 65 kA (600 V AC) 25 kA |
ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
IDEA Granular Category Code (IGCC) | 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers | UNSPSC | 39121616 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | eClass | V11.1 : 27370409 |
Manufacturer ID | 1SDA102092R1 |
Specifications may be subject to change without notice
