Product Model

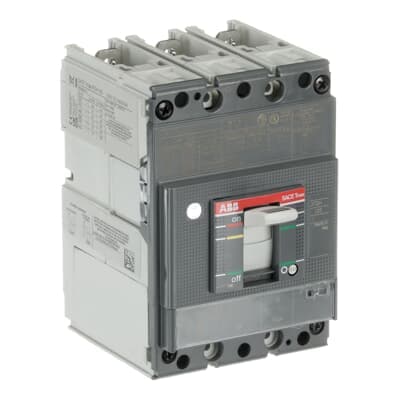

XT2H 125 TMF 70-700 3p F F UL/CSA
Selling Points
- 1High-Performance Design: Designed for reliable operation in industrial settings with a thermomagnetic release.
- 2UL/CSA Certification: Meets stringent safety standards for UL and CSA certifications.
- 3Three-Pole Configuration: Suitable for three-phase applications with front terminals.
- 4Extended Operating Range: Rated for 70-700 A, ensuring versatility in various electrical systems.
- 5Eco-Friendly Features: Compliant with environmental regulations, including RoHS and REACH declarations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 9AKK108467A6707 | Product Net Width | 90 mm |
Product Net Height | 130 mm | Product Net Depth / Length | 82.5 mm |
Product Net Weight | 1.1 kg | Circuit Breaker Type to be Associated | Power Distribution |
Product Main Type | SACE Tmax XT | Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker | Suitable for Product Class | SACE Tmax XT |
Version | F | CAD Dimensional Drawing | 1SDH002230A1001 |
Connecting Capacity Main Circuit | Busbar 32.5..100 mm² | Current Type | AC/DC |
Electrical Durability | 120 cycles per hour 8000 cycle | Mechanical Durability | 240 cycles per hour 25000 cycle |
Number of Poles | 3 | Opening Time | CB with SOR 15 ms CB with UVR 15 ms |
Order Multiple | 1 piece | Power Loss | at Rated Operating Conditions per Pole 4.4 W |
Rated Current (In) | 70 A | Rated Instantaneous Short-Circuit Current Setting (Ii) | 700 A |
Rated Operational Voltage | 600 V AC 500 V DC | Rated Uninterrupted Current (Iu) | 125 A |
Rated Voltage (Ur) | 600 V | Recommended Screw Driver | Main Circuit M6 |
Release | TMF | Release Type | TM |
Setting Range | 70 A | Short-Circuit Performance Level | H |
Standards | UL489 | Sub-type | XT2 |
Terminal Connection Type | Front | Terminal Type | Bolt |
Tightening Torque | 6 N·m | Interrupting Rating acc. to UL489 | (240 V AC) 150 kA (480 V AC) 65 kA (600 V AC) 25 kA (250 V DC) 2 Poles in Series 65 kA (500 V DC) 3 Poles in Series 65 kA |
ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
IDEA Granular Category Code (IGCC) | 4927 >> Molded case circuit breakers | Object Classification Code | Q |
UNSPSC | 39121616 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 | Manufacturer ID | 1SDA074797R1 |
Specifications may be subject to change without notice
