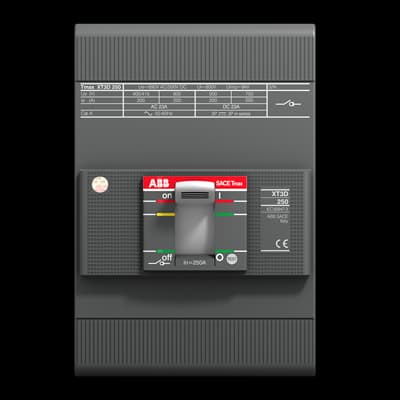

Product Model
XT3S-D 225 MCS-UL/CSA Im=2700 3p F F
Selling Points
- 12700 A trip rating ensures robust protection against overcurrents.
- 2Meets UL standards for safety and reliability in electrical distribution systems.
- 3Ideal for space-efficient installations with dimensions of 5.9 in H x 4.13 in W x 2.75 in D.
- 4Features a molded case switch disconnector for efficient and reliable operation.
- 5Compatible with 600Y/347 V (UL) and 250 A, 690 V (IEC) voltage ratings for versatile applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 9AKK108467A6707 | Product Net Width | 105 mm |
Product Net Height | 150 mm | Product Net Depth / Length | 70 mm |
Product Net Weight | 1.7 kg | Product Main Type | SACE Tmax XT |
Product Name | Moulded Case Circuit Breaker | Product Type | Switch Disconnector |
Suitable for Product Class | SACE Tmax XT | Version | F |
CAD Dimensional Drawing | 1SDH001295R0409 | Connecting Capacity Main Circuit | Busbar 85..192 mm² |
Electrical Durability | 120 cycles per hour 8000 cycle | Mechanical Durability | 240 cycles per hour 25000 cycle |
Number of Poles | 3P | Opening Time | CB with SOR 15 ms CB with UVR 15 ms |
Order Multiple | 1 piece | Power Loss | at Rated Operating Conditions per Pole 17.8 W |
Rated Operational Voltage | 600Y/347 V AC 500 V DC | Rated Uninterrupted Current (Iu) | 225 A |
Rated Voltage (Ur) | 600Y/347 V | Recommended Screw Driver | Main Circuit M8 |
Short-Circuit Performance Level | S | Standards | UL489 |
Sub-type | XT3 | Terminal Connection Type | Front |
Terminal Type | Bolt | Tightening Torque | 8 N·m |
Interrupting Rating acc. to UL489 | (240 V AC) 65 kA (480 V AC) 35 kA (600Y / 347 V AC) 10 kA (250 V DC) 2 Poles in Series 35 kA (500 V DC) 3 Poles in Series 35 kA | ETIM 8 | EC000216 - Switch disconnector |
ETIM 9 | EC000216 - Switch disconnector (low voltage) | IDEA Granular Category Code (IGCC) | 4927 >> Molded case circuit breakers |
Object Classification Code | Q | UNSPSC | 39121616 |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | eClass | V11.1 : 27371403 |
Manufacturer ID | 1SDA075618R1 |
Specifications may be subject to change without notice
