Product Model

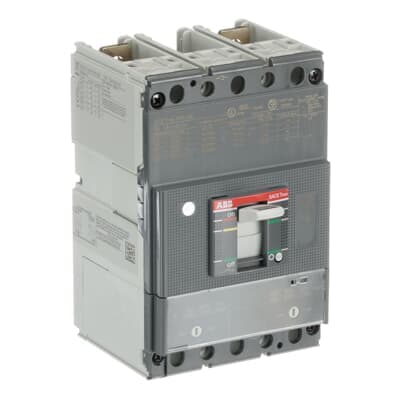

XT4N 250 TMF 250-2500 2p F F UL/CSA
Selling Points
- 1The XT4N 250 TMF features a robust design for reliable operation in demanding power distribution environments.
- 2Meets stringent safety standards with UL and CSA certifications, ensuring compliance with industry regulations.
- 3Provides fast and accurate tripping with thermal magnetic fixed release technology, enhancing safety and efficiency.
- 4Suitable for a wide range of applications, including transformer and generator installations, offering flexibility in various electrical setups.
- 5Built to withstand 120 cycles per hour and 8000 cycles in total, ensuring long-lasting durability in electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Environmental Information | 9AKK108467A6707 | Product Net Width | 105 mm |
Product Net Height | 160 mm | Product Net Depth / Length | 82.5 mm |
Product Net Weight | 2.05 kg | Circuit Breaker Type to be Associated | Power Distribution |
Product Main Type | SACE Tmax XT | Product Name | Moulded Case Circuit Breaker |
Product Type | Automatic Circuit Breaker | Suitable for Product Class | SACE Tmax XT |
Version | F | Current Type | AC/DC |
Electrical Durability | 120 cycles per hour 8000 cycle | Mechanical Durability | 240 cycles per hour 25000 cycle |
Number of Poles | 2 | Opening Time | CB with SOR 15 ms CB with UVR 15 ms |
Order Multiple | 1 piece | Power Loss | at Rated Operating Conditions per Pole 16.4 W |
Rated Current (In) | 250 A | Rated Instantaneous Short-Circuit Current Setting (Ii) | 2500 A |
Rated Operational Voltage | 600 V AC 500 V DC | Rated Uninterrupted Current (Iu) | 250 A |
Rated Voltage (Ur) | 600 V | Release | TMF |
Release Type | TM | Setting Range | 250 A |
Short-Circuit Performance Level | N | Standards | UL489 |
Sub-type | XT4 | Terminal Connection Type | Front |
Interrupting Rating acc. to UL489 | (240 V AC) 65 kA (480 V AC) 25 kA (600 V AC) 18 kA (250 V DC) 2 Poles in Series 35 kA (600 V DC) 3 Poles in Series 35 kA | ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 | Manufacturer ID | 1SDA080115R1 |
Specifications may be subject to change without notice
