Product Model

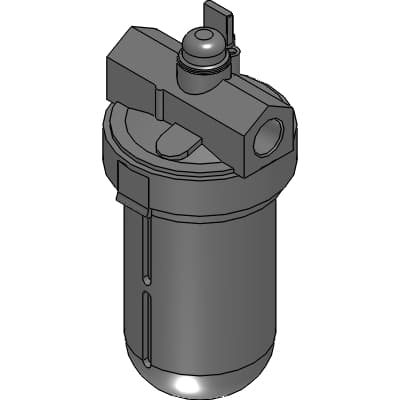

3003E-6C
Selling Points
- 1High-Pressure Air Compressed Solution: The 3003E-6C operates at a maximum working pressure of 1.0 MPa (≈150 psi, 10 bar) and proof pressure of 1.5 MPa (≈220 psi, 15 bar).
- 2Advanced Oil Rate Adjustment: Features a special needle for precise oil rate adjustment, ensuring optimal lubrication.
- 3Durable Construction: Built with zinc alloy die-casting for the body and clamp ring, along with polycarbonate resin for the observation dome.
- 4Versatile Port Sizes: Available in Rc 3/4 and Rc 1 port sizes to fit various pneumatic systems.
- 5Standard Bowl Guard: Includes a standard bowl guard for added protection and easy maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | 3003E : Large | Port size | 6C : Rc3/4 |
Drain discharge | Blank : Blank bowl | Bowl material 1 | Blank : Polycarbonate |
Bowl material 2 | Blank : None | A | 118mm |
C | 50mm | D | 118mm |
E | 200mm | B | 259.0mm |
infotext | Dimensions |
Specifications may be subject to change without notice
