Product Model

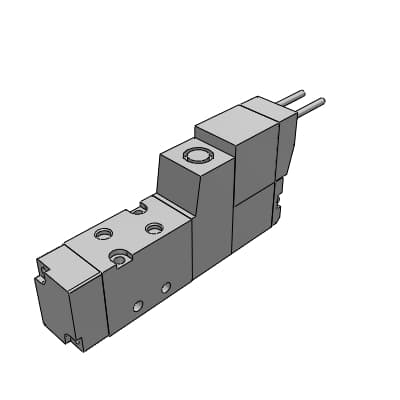

4SA010-M3-3
Selling Points
- 1Compact design with 10 mm valve width for space-saving applications.
- 2Low wattage design (25 mA at 24 VDC) for energy efficiency.
- 3Versatile electrical connections including grommet lead wire and C/D-type connectors.
- 4Pilot operated soft spool valve for precise control of compressed air.
- 5Quick response time of 3 ms with supply pressure of 0.5 MPa, ideal for fast pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | 4SA0 | Solenoid position | 1 : 2-position single |
Fixed code | 0 | Port size | M3 |
Manual override | Blank : Non-locking manual override | Electrical connections | Blank : Gromment lead wire (300 mm) |
Other opitons | Blank : Without mouniting plate | Voltage | 3 : 24 VDC |
Specifications may be subject to change without notice
