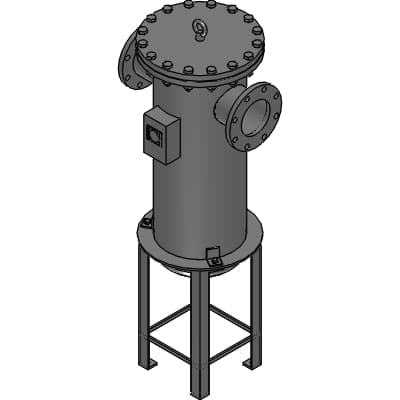

Product Model
AF3080X-150
Selling Points
- 1Precision Engineering: Designed with advanced technology for precise control and reliability.
- 2Durability: Constructed with high-quality materials to withstand harsh industrial environments.
- 3Versatility: Suitable for various applications including refining, pressure adjusting, and air drying.
- 4Easy Maintenance: Semi-automated assembly facilities ensure efficient maintenance and repair.
- 5Comprehensive Support: Backed by CKD Corporation's global product lineup and extensive customer support.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | AF3 | Flow rate classification | 080 : 80 m3/min |
Main line filter | X | Bore size | 150 |
Specified color paint | Blank : None | English language specifications | Blank : None |
Companion flange attached | Blank : None | Foundation bolt/nut attached | Blank : None |
L1 : SS base bolt/nut attached | Blank : None | Outdoor | Blank : None |
IN/OUT reverse direction | Blank : None | Product photo | Blank : None |
A | 600mm | B | 1300mm |
C | 1606mm | D | 490mm |
E | 16-M22 X 80 | XF | M20 |
G | 600mm | XH | 280mm |
J | 280mm | XK | 15mm |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/26/AF3000?t=list&cid=68&sid=0&p=2 |
Specifications may be subject to change without notice
