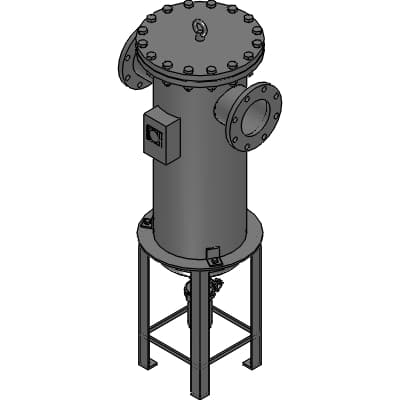

Product Model
AF3160P-200
Selling Points
- 1High Air Flow Rate: Process air flow rates from 16 to 256 m3/min (ANR) for efficient filtration.
- 2Robust Construction: Built with durable materials, including SS400 for the upper flange and NBR for gaskets.
- 3Standardized Flange: Compatible with 10K flanges for easy integration into pneumatic systems.
- 4Enhanced Filtration: Equipped with activated carbon and NBR elements for superior filtration performance.
- 5Versatile Options: Available in various configurations to suit different pneumatic pressure circuit needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | AF3 | Flow rate classification | 160 : 160 m3/min |
Main line filter | P | Bore size | 200 |
Specified color paint | Blank : None | English language specifications | Blank : None |
Companion flange attached | Blank : None | Foundation bolt/nut attached | Blank : None |
L1 : SS base bolt/nut attached | Blank : None | Outdoor | Blank : None |
IN/OUT reverse direction | Blank : None | Product photo | Blank : None |
A | 700mm | B | 1350mm |
C | 1693mm | D | 620mm |
E | 20-M24 X 90 | XF | M20 |
G | 600mm | XH | 350mm |
J | 350mm | XK | 15mm |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/26/AF3000?t=list&cid=68&sid=0&p=2 |
Specifications may be subject to change without notice
