CKD CorporationFilters
Product Model

AF3160S-200

Manufacturer

CKD Corporation

Category

Filters

Product ID

50191

In Stock
Last updated: 2025/4/17
View Specifications

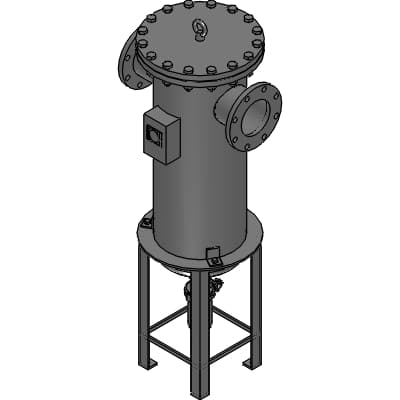

CKD Corporation AF3160S-200

Selling Points

  • 1High-flow rate up to 256 m3/min (ANR) for efficient air processing.
  • 2Durable construction with a proof pressure of 1.5 MPa for long-lasting performance.
  • 3Compatible with compressed air working pressure range of 0.07 to 1.0 MPa.
  • 4Effective filtration degree of 350 μm for reliable air quality control.
  • 5Easy installation with 10K flange compatibility for seamless integration into pneumatic systems.
Product Details
AF3160S-200
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model No.
AF3
Flow rate classification
160 : 160 m3/min
Main line filter
S
Bore size
200
Specified color paint
Blank : None
English language specifications
Blank : None
Companion flange attached
Blank : None
Foundation bolt/nut attached
Blank : None
L1 : SS base bolt/nut attached
Blank : None
Outdoor
Blank : None
IN/OUT reverse direction
Blank : None
Product photo
Blank : None
A
700mm
B
1350mm
C
1693mm
D
620mm
E
20-M24 X 90
XF
M20
G
600mm
XH
350mm
J
350mm
XK
15mm
Infotext
https://www.ckd.co.jp/kiki/en/product/detail/26/AF3000?t=list&cid=68&sid=0&p=2

Specifications may be subject to change without notice
