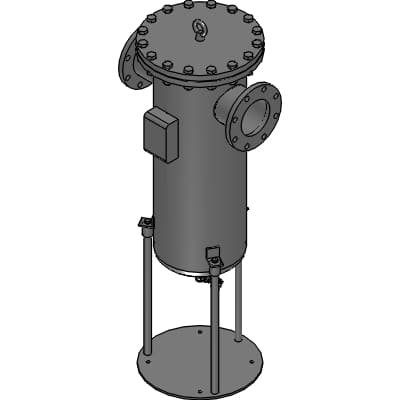

CKD Corporation AF5080X-150

Selling Points

  • 1Designed with advanced technology for precise fluid control in industrial applications.
  • 2Constructed from high-quality materials to ensure long-lasting performance and reliability.
  • 3Suitable for a wide range of industries including manufacturing, automotive, and more.
  • 4Optimized for smooth operation with minimal maintenance required.
  • 5Meets international standards for safety and performance, ensuring compliance in various industrial settings.
Product Details
AF5080X-150
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model No.
AF5
Flow rate classification
080 : 80 m3/min
Main line filter
X
Bore size
150
Drain discharger 5100-4C
Blank : None
Without drain discharger
Blank : None
Companion flange attached
Blank : None
English language specifications
Blank : None
SUS nameplate
Blank : None
Foundation bolt/nut attached (SS400)
Blank : None
Foundation bolt/nut attached (SUS304)
Blank : None
IN/OUT reverse direction
Blank : None
Product photo
Blank : None
A
600mm
B
1300mm
C
1606mm
XD
490mm
XE
16-M22 X 80
XF
M20
G
600
XH
480
J
280
XK
15
Infotext
https://www.ckd.co.jp/kiki/en/product/detail/27/AF5000?t=list&cid=68&sid=0&p=2

Specifications may be subject to change without notice
