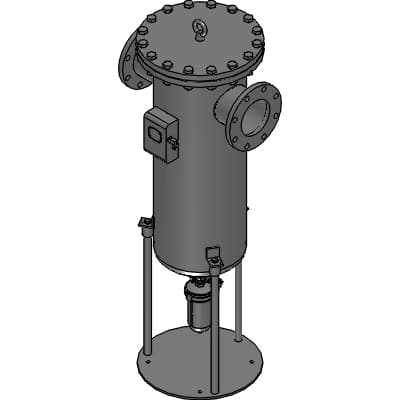

Product Model
AF5192M-200
Selling Points
- 1High-Precision Fluid Control: CKD's AF5192M-200 ensures precise control of fluids in industrial processes.
- 2Hygiene Management: Designed to meet stringent hygiene standards, ideal for cleanroom environments.
- 3Energy Efficiency: Optimized for energy-saving operations, reducing costs and environmental impact.
- 4Wide Industrial Applications: Suitable for a variety of industrial fields including semiconductor and liquid crystal manufacturing.
- 5Advanced Technology: Utilizes cutting-edge pneumatic technology for high-performance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | AF5 | Flow rate classification | 192 : 192 m3/min |
Main line filter | M | Bore size | 200 |
Drain discharger 5100-4C | Blank : None | Without drain discharger | Blank : None |
Companion flange attached | Blank : None | English language specifications | Blank : None |
SUS nameplate | Blank : None | Foundation bolt/nut attached (SS400) | Blank : None |
Foundation bolt/nut attached (SUS304) | Blank : None | IN/OUT reverse direction | Blank : None |
Product photo | Blank : None | A | 750mm |
B | 1360mm | C | 1709mm |
XD | 675mm | XE | 20-M24 X 100 |
XF | M20 | G | 600 |
XH | 670 | J | 400 |
XK | 15 | Infotext | https://www.ckd.co.jp/kiki/en/product/detail/27/AF5000?t=list&cid=68&sid=0&p=2 |
Specifications may be subject to change without notice
