Product Model

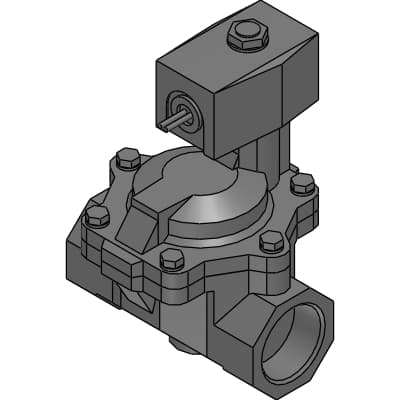

AP21-32A-03A-AC100V
Selling Points
- 1Reliable Operation: The AP21-32A-03A-AC100V solenoid valve ensures consistent and reliable operation in various industrial settings.
- 2Versatile Applications: Suitable for use with air, steam, water, and kerosene, making it versatile for different fluid control needs.
- 3High-Temperature Resistance: Designed to withstand high temperatures up to 130°C, ensuring durability in demanding environments.
- 4Easy Installation: Features a simple and straightforward installation process with options for conduit wiring and manual override.
- 5Durable Construction: Built with a bronze body and nitrile rubber sealant, providing long-lasting performance and resistance to corrosion.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | AP2 | Actuation | 1 : NC (normally closed) type |
Port size | 32A : Rc1 1/4 | Body/sealant combination | 0 : Bronze, Nitrile rubber sealant, Nitrile rubber O-ring, - , Air/water/kerosene/oil (up to 60°C) |
Option : Coil housing | 3A : Open frame type lead wire | Option : Manual operating device (locking) | Blank : None |
Option : Cable gland (marine cable gland) / Conduit (conduit pipe) | Blank : None | Option : Surge suppressor | Blank : None |
Voltage | AC 100V : 100 VAC 50/60 Hz, 110 VAC 60 HzV | A | 125mm |
B | 54mm | C | 112mm |
D | 27mm | E | 106.5mm |
F | 135.5mm | G | Rc 1 1/4mm |
H | 32mm | J | -mm |
K | -mm | L | -mm |
M | -mm | N | -mm |
P | -mm |
Specifications may be subject to change without notice
