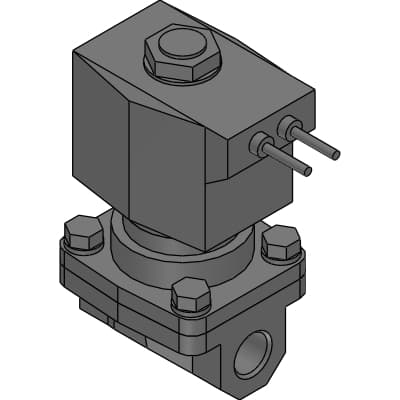

Product Model
APK11-8A-02C-AC100V
Selling Points
- 1Compatible with air, water, low vacuum, kerosene, and oil.
- 2Max. working pressure of 2 MPa ensures reliable operation.
- 3Operates from -10 to 60 °C, suitable for diverse environments.
- 4Bronze body and nitrile rubber seal for long-lasting performance.
- 5Grommet lead wire (300mm) simplifies coil housing connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | APK11 | Port size | 8 : 1/4 |
Thread type | A : Rc | Body/sealant combination | 0 : Bronze, Nitrile rubber sealant, Nitrile rubber O-ring, - , Air/water/kerosene/oil (up to 60°C) |
Option : Coil housing | 2C : Grommet lead wire | Option : Mounting plate | Blank : None |
Option : Cable gland (Marine cable gland)/Conduit (Conduit pipe) | Blank : None | Option : Surge suppressor | Blank : None |
Voltage | AC 100V : 100 VAC 50/60 Hz, 110 VAC 60 HzV | A | -mm |
B | -mm | C | -mm |
D | -mm | E | -mm |
F | -mm | G | -mm |
H | -mm | J | -mm |
K | -mm | L | -mm |
M | -mm | N | -mm |
P | -mm | Q | -mm |
R | -mm | T | -mm |
Specifications may be subject to change without notice
