Product Model

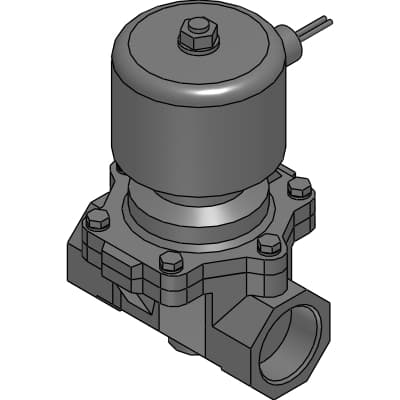

APK21-32A-03A-AC100V
Selling Points
- 1The APK21-32A-03A-AC100V offers precise control over fluid flow with its pilot kick type 2 port solenoid valve design.
- 2Built with a bronze body and nitrile rubber valve sealant for durability and resistance to harsh environments.
- 3Suitable for air, water, kerosene, and oil applications, making it versatile for various industrial uses.
- 4Operates efficiently with a low power consumption of 5.5 watts, reducing energy costs.
- 5Designed to withstand a maximum working pressure differential of 0.7 MPa, ensuring reliable operation under high pressure conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | APK21-FP1 | Port size | 32A : Rc1 1/4 |
Body/sealant combination | 0 : Bronze, Nitrile rubber sealant, Nitrile rubber O-ring, - , Air/water/kerosene/oil (up to 60°C) | Option : Coil housing | 3A : Open frame type lead wire |
Option : Cable gland (Marine cable gland)/Conduit (Conduit pipe) | Blank : None | Option : Surge suppressor | Blank : None |
Voltage | AC 100V : 100 VAC 50/60 Hz, 110 VAC 60 HzV | A | 125mm |
B | 54mm | C | 27mm |
D | 116.5mm | E | 158.5mm |
E1 | -mm | F | 112mm |
F1 | -mm | G | Rc1 1/4 |
Specifications may be subject to change without notice
