Product Model

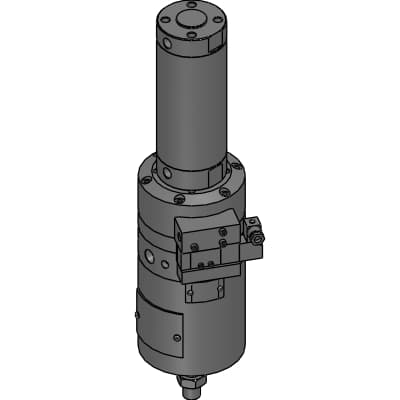

BBS-A-D-00-80D-100

Selling Points
- 1Effortless Load Control: The BBS-A-D-00-80D-100 balancer unit allows heavy loads up to 285 kg to be controlled with minimal force.
- 2Operator Safety: Ensures operator safety in workplaces handling heavy loads by maintaining optimal balance.
- 3Smooth Operation: Transports heavy objects with an almost manual smoothness, compared to conventional stiff inching movement.
- 4Adjustment Convenience: Can be adjusted to the optimal condition by switching with one button without complicated adjustment.
- 5Safety Brake: Equipped with a standard brake to prevent workpieces from falling or bouncing up in case of pneumatic power loss.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Model No. | BBS-A | TYPE | Blank : Electric (24 VDC) |
Load direction | D : Push type | Cylinder orientation (piston rod direction) | Blank : Downward |
Mounting | 00 : Basic | Bore size | 80mm |
Stroke | 100mm | Piston rod position | 0mm |
Accessory | Blank : None | A | 40mm |
C | 37mm | DA | M10 x 1.5 depth 22mm |
DB | M10 x 1.5 depth 15mm | E | 89mm |
F | 124mm | H | 240mm |
I | 66mm | J | 40mm |
KK | M22 x 1.5mm | LL | 348mm |
MM | 25mm | M | 2mm |
N | 3mm | P | 77mm |
Q | 90mm | SB | 59mm |
SD | 50mm | T | 13mm |
WF | 31mm | X | 422mm |
XF | 71mm | YA | 15mm |
YB | 15mm | YC | 34mm |
YD | 55.7mm | ZA | Rc3/8 |
ZB | Rc1/8 | ZC | Rc1/2 |
CA | 472mm | CD | 18mm |
CE | 18mm | CF | 35mm |
CI | 25mm | CT | -mm |
CJ | 414mm | CM | 80mm |
CN | -mm | CX | 28mm |
CY | 56mm | CZ | 64mm |
FA | 433mm | FD | -mm |
FF | 17mm | FG | 365mm |
FL | -mm | FM | -mm |
FT | -mm | FJ | 390mm |
Specifications may be subject to change without notice
