CKD CorporationHand with length measuring sensor
Product Model

BHG-03CS-05HCS2S

Manufacturer

CKD Corporation

Category

Hand with length measuring sensor

Product ID

53034

In Stock
Last updated: 2025/4/17
View Specifications

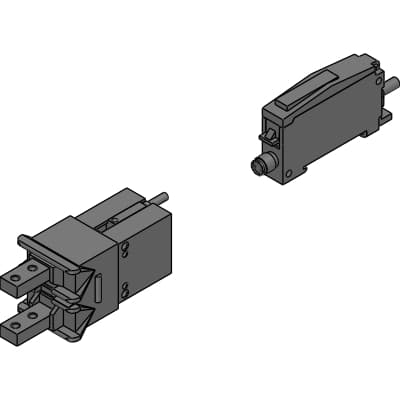

CKD Corporation BHG-03CS-05HCS2S

Selling Points

  • 1High precision and smooth operation with cross roller guide.
  • 2Compact design withstanding large moment loads.
  • 3Improved environmental resistance with rubber cover.
  • 4Two proximity switches for open/close confirmation.
  • 5Versatile options for double and single acting configurations.
Product Details
BHG-03CS-05HCS2S
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Type
BHG
Size
03CS
Cylinder bore size
Ø16mm
Compatible sensor
5
Sensor lead wire outlet direction
H : Axial lead wire
Sensor lead wire terminal specifications
C : With M8 connector (for amplifier separated)
Amplifier unit output and shape
S2S : Amplifier separate/switch 2 point output (01CS, 03CS compatible)
Display
None : There is no indicator (display)
Length (min-max)
18mm

Specifications may be subject to change without notice
