CKD CorporationParallel hands
Product Model

BSA2-006C-F2S-R

Manufacturer

CKD Corporation

Category

Parallel hands

Product ID

52674

In Stock
Last updated: 2025/4/23
View Specifications

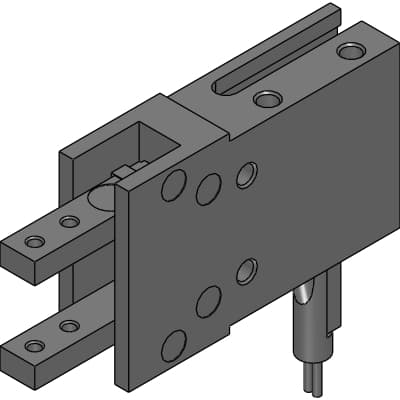

CKD Corporation BSA2-006C-F2S-R

Selling Points

  • 1High Precision and Smooth Operation: Equipped with a cross roller guide for precise and smooth movement.
  • 2Miniature Design: Total length of 50 mm, width of 25 mm, and just 10 mm thin, perfect for handling small workpieces.
  • 3Easy Mounting Options: Side mounting (tap and through hole) and top mounting (tap) possible, allowing for multiple-unit mounting.
  • 4Open/Close Confirmation Switch: Two proximity switches can be installed for confirmation of open and close positions.
  • 5Versatile CAD Compatibility: Available for download in various CAD formats including SOLIDWORKS, Inventor, Creo, and more.
Product Details
BSA2-006C-F2S-R
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model No.
BSA2
Size
006C
Option
Blank : Standar (double acting)
Switch model
F2S : Proximity, 1 color light, 2 wire
Lead wire direction
Blank : None
Lead wire length
Blank : 1 m (standard)
Switch quantity
R : 1 on open side
Length (Min-Max)
10mm

Specifications may be subject to change without notice
