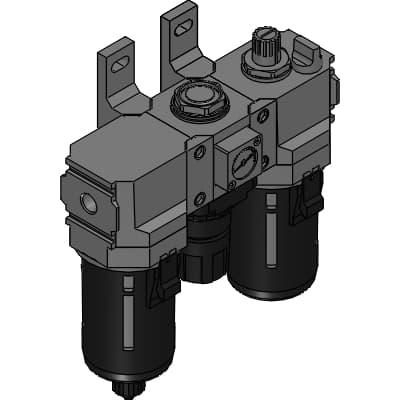

Product Model
C2500-8-W
Selling Points
- 1All-metal construction for durability and longevity.
- 2Improved weather resistance for use in outdoor applications.
- 3Compatibility with various port sizes including Rc, NPT, and G.
- 4Ambient temperature compatibility from -10 to 60°C.
- 5High-pressure handling with max working pressure up to 1.0 MPa.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | C2500 | Air filter | F3000 |
Regulator | R2000 | Lubricator | L3000 |
Port size | 8 : 1/4 | Port thread type | Blank : Rc thread |
Drainage | Blank :With manual drain cock | Drainage lubricator | Blank : Lubricator without drain cock |
Bowl material | Blank : Polycarbonate bowl | Element | Blank : 5μm |
Differential pressure detection | Blank : Without differential pressure detection port | Pressure range | Blank : 0.05 to 0.85 MPa |
Relief | Blank : With relief mechanism | Pressure gauge | Blank :Standard pressure gauge (G401-W) |
Flow direction | Blank : Standard flow (left to right) | Distributor | Blank : Without distributor |
Pressure switch | Blank : Without pressure switch | Shut-off / lockout valve | Blank : Without valve |
Displayed unit | Blank : MPa display (Rc thread), psi display (NPT thread), bar display (G thread) | Piping adaptor set (included) | Blank : Not attached |
Adaptor thread type | Blank : None | Attachment gauge type | Blank : Not attached |
Attachment (attached) | Blank : Not attached | Attachment (attached) | Blank : Not attached |
Specifications may be subject to change without notice
