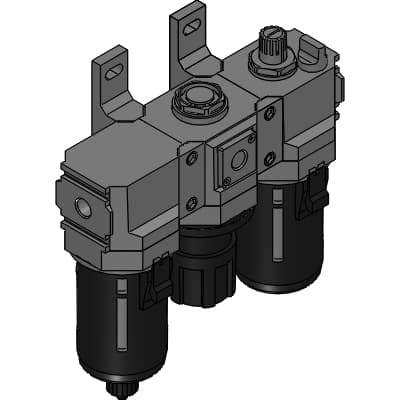

Product Model
C3000-8-W-TP6
Selling Points
- 1Unified key boundary dimensions for easy system upgrades.
- 2Original chemical fiber structure reduces clogging and extends element life.
- 35μm filtration rating ensures clean compressed air.
- 4Adjustable set pressure from 0.05 to 0.85 MPa.
- 5Made with resin bowl material for robust performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | C3000 | Air filter | F3000 |
Regulator | R3000 | Lubricator | L3000 |
Port size | 8 : 1/4 | Port thread type | Blank : Rc thread |
Drain discharge | Blank : Lubricator without drain cock | Bowl material | Blank : Polycarbonate bowl |
Element | Blank : 5μm | Differential pressure detection | Blank : Without differential pressure detection port |
Pressure range | Blank : 0.05 to 0.85 MPa | Pressure relief | Blank : With relief mechanism |
Pressure gauge | T : No pressure gauge (gauge port (Rc1/4) assembled sealed) | Flow direction | Blank : Standard flow (left to right) |
Displayed unit | Blank : MPa display, Rc thread | Piping adaptor set (included) | Blank : Not attached |
* Adaptor thread type | Blank : None | Attachment (attached) | Blank : Not attached |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/354/C%E2%80%BB000-P6?t=list&cid=66&sid=0 |
Specifications may be subject to change without notice
