Product Model

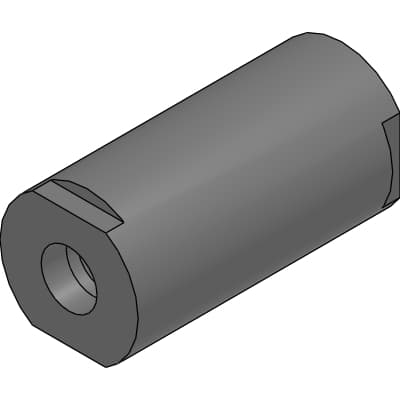

CHV2-10-J
Selling Points
- 1Ensures one-way fluid flow to prevent reverse flow of compressed air.
- 2Available in piping sizes from Rc1/8 to Rc11/2 series.
- 3Downsized body with an average volume ratio of 34% and mass ratio of 25%.
- 4Easy separation for recycling, making it an environmentally conscious product.
- 5Includes fluoro-elastomer and oil-free specifications, with mounting brackets for small bore sizes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | CHV2-J | Port size | 10 : Rc 3/8 |
Option : Fluoro rubber | Blank: No option | Option : Oil-prohibited | Blank: No option |
Accessory | Blank: None | A | 27mm |
B | 60mm | φ C | 31mm |
D | 26mm | E | M3 |
F | 25mm | G | 5mm |
H | 14mm | I | 32mm |
J | 34mm | φ K | 4.4mm |
L | 1.6mm |
Specifications may be subject to change without notice
