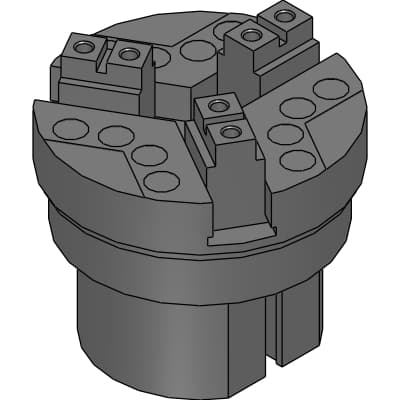

Product Model
CKG-32CS-T2H-R
Selling Points
- 1High precision pneumatic cylinder with ±0.01 mm repeatability.
- 2Double acting operation for enhanced control and flexibility.
- 3Compatible with programmable controllers for seamless integration.
- 4Operating stroke length of 32 mm for precise movement control.
- 5Compressed air operation with a max. working pressure of 0.7 MPa (≈100 psi).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | CKG-FP1 | Size | 32CS |
Bore | 32mm | Option | Blank: Standard (double acting) |
Rubber cover | None | Small jaw | None |
Switch model no. | T2, Proximity, 1 color light, 2 wire | Lead wire direction | H: Axial |
Lead wire length | Blank: 1 m lead wire | Switch quantity | R: One on open side |
POS | 13.5mm | MIN | 13.5mm |
MAX | 17.5mm |
Specifications may be subject to change without notice
