Product Model

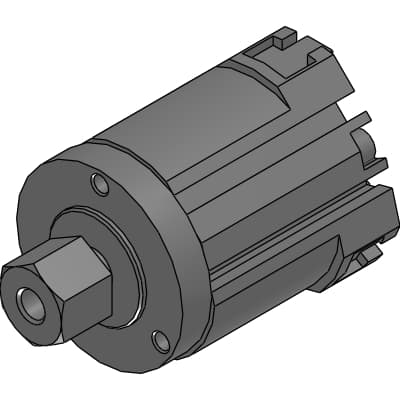

CKL2-25CS-FC
Selling Points
- 1Advanced gripping power with stroke lengths of 5, 6, 8, and 10 mm.
- 2Durable construction with stainless steel and aluminum alloy components.
- 3Precise dimensions for seamless integration with various tools and machinery.
- 4Operating ambient temperature range of 5°C to 60°C (41°F to 140°F).
- 5Robust rod diameter options (ø6, ø8, ø10, ø12 mm) for enhanced stability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model | CKL2 | Size | 25CS |
Position | 0.0mm | A | 46mm |
AA' | 3-M5 X 0.8 depth 8 | B | 26mm |
C | MAX80.1/MIN76.4 | D | 58.0mm |
E | 1.5mm | F | 14mm |
H | M8 X 1.25 depth 10 | I | 17mm |
J | 39mm | K | 10.0mm |
L | 7mm | M | 16mm |
N | 7.0mm | O | 2mm |
P | 3mm | Q | 21mm |
R | 39mm | S | 9mm |
T | 3.5mm | U | 3 x 2-M4 x 0.7 depth 8 |
V | 8.5mm | W | 15.5mm |
X | 7mm | Y | 12mm |
Z | 3.6mm |
Specifications may be subject to change without notice
