Product Model

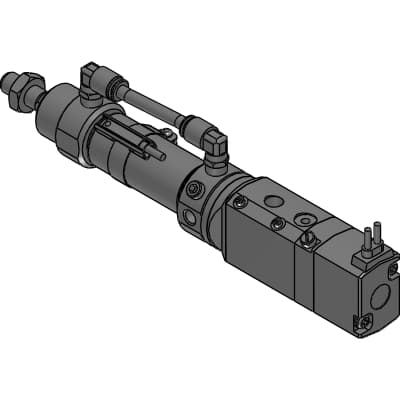

CKV2-M-00-32-25-1-T0H-R
Selling Points
- 1The CKV2-M-00-32-25-1-T0H-R ensures minimal rotational backlash, preventing rod rotation securely.
- 2Equipped with no-lubrication sliding packing seals, this cylinder offers improved durability and reduced maintenance.
- 3The cylinder tube is made of stainless steel, providing excellent corrosion resistance and stability.
- 4The cylinder and solenoid valve can be disassembled by simply loosening one set screw, enhancing maintenance efficiency.
- 5Available in various stroke lengths, including custom options per mm increment, to meet specific application needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | CKV2-M | Bore size | 32mm |
Mounting | 00: Basic | Port thread | Blank: Rc thread |
Stroke | 25mm | How to wire | Blank: Grommet lead wire (300 mm) |
Voltage | 1 : 100 VAC | Switch model No. | T0: Reed, 1-color LED, 2-wire |
Lead wire direction | H: Straight | Lead wire length | Blank: 1 m (standard) |
Switch quantity | R: 1 on rod side | Option 1 | Blank: None |
Option 2 | Blank: None | Option 3 | Blank: None |
Option 4 | Blank: None | Option 5 | Blank: None |
Option 6 | Blank: None | Option 7 | Blank: None |
Accessory 1 | Blank: None | Accessory 2 | Blank: None |
Stroke position | 0 | Product information | Product information |
KA | 10mm |
Specifications may be subject to change without notice
