Product Model
CKV2-M1-Y-40
Selling Points

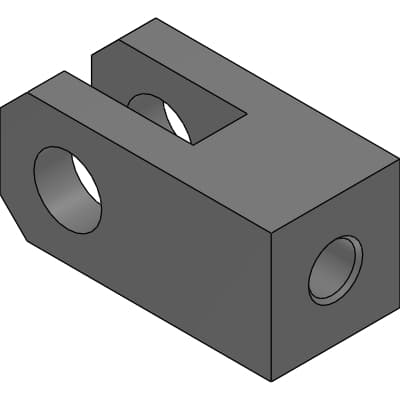

- 1High-performance double notched knuckle joint for CMK2, CMA2, and CKV2 series cylinders.
- 2Made from durable stainless steel material for excellent corrosion resistance.
- 3Easy installation with included attachment for quick setup.
- 4Suitable for applications requiring precise support and stability.
- 5Compact design with M12 thread size and 1.5mm thread pitch for efficient use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | M1-Y | Bore size | 40mm |
SIZE | 40mm | AB | 20mm |
CA | 36mm | CB | 10mm |
CD | 12mm | CH | 25mm |
CL | 25mm | KK | M12x1.5 |
MB | 16mm | MC | 12mm |
Weight | 200g |
Specifications may be subject to change without notice
