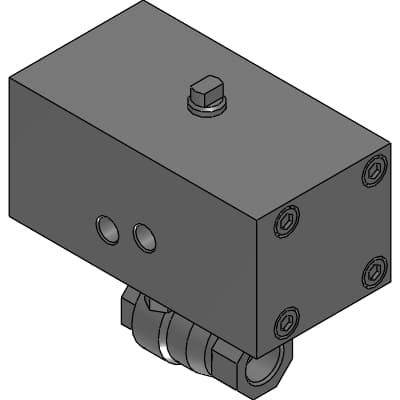

Product Model
CSB-10-H
Selling Points
- 1High torque output up to 18 N•m for efficient operation.
- 2Precise index accuracy of ±30 seconds for reliable positioning.
- 3Robust motor insulation class F withstanding 1500 VAC for 1 minute.
- 4Wide operating ambient temperature range from 0 to 45°C.
- 5Durable construction with a weight range of 4.7 to 44 kg.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model | CSB : Standard bore | Actuator | Blank : Double acting |
Port size | 10 : Rc3/8 | Body/seat material | H : Copper alloy - reinforced PTFE |
A | 50mm | B | 24mm |
C | 91mm | D | 106mm |
E | Rc3/8mm |
Specifications may be subject to change without notice
