Product Model

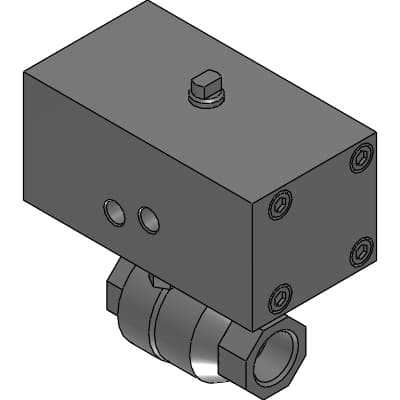

CSBF-15-H
Selling Points
- 1Control large flow rates with minimal pressure loss.
- 2Operates up to 164°C, ideal for steam applications.
- 3Stable operation resistant to foreign matter with strong air actuation.
- 4Compact rotary valve design for space-saving installations.
- 5Constructed from copper alloy or stainless steel for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model | CSBF : Full bore | Actuator | Blank : Double acting |
Port size | 15 : Rc1/2 | Body/seat material | H : Copper alloy - reinforced PTFE |
A | 65mm | B | 28mm |
C | 97mm | D | 116.5mm |
E | Rc1/2mm |
Specifications may be subject to change without notice
