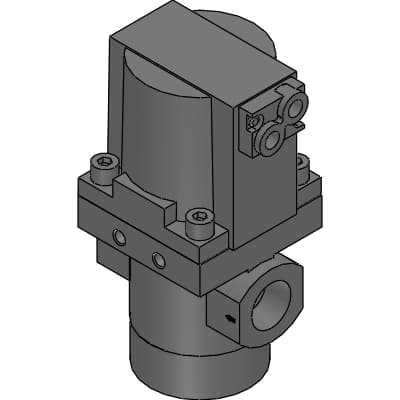

Product Model
CVE3-20A-35-0
Selling Points
- 1High Pressure Capability: Operates at 0 to 3.5 MPa, ensuring robust performance in demanding environments.
- 2Durable Construction: Built with a cast iron body and nitrile rubber seals for long-lasting reliability.
- 3Versatile Port Sizes: Available in Rc 3/4 port size, accommodating various system configurations.
- 4Efficient Operation: Designed for smooth operation with a top-mounted solenoid valve for precise control.
- 5Wide Compatibility: Suitable for coolant control in machine tools and other industrial applications requiring high pressure valves.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | CVE3 | Port size | 20A: Rc3/4 |
Working pressure range | 35: 0 to 3.5 MPa | Body/sealant combination | 0: Standard, cast iron (plating) body, nitrile rubber sealant |
Option: Mounting plate | Blank: No options | A | 90mm |
B | 40mm | C | 52mm |
CA | -mm | CC | -mm |
D | 98mm | E | 168mm |
F | 77mm | G | Rc3/4 |
H | -mm | J | - |
K | M8 thread length 10 | L | 79.5mm |
M | 25mm | N | 53mm |
P | 11 x 15mm | Q | 125mm |
R | 145mm | S | 35mm |
T | 3.2mm | U | 62.5mm |
Specifications may be subject to change without notice
