Product Model

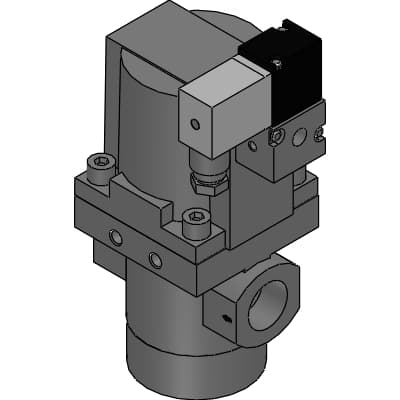

CVSE3-50A-35-02G-1
Selling Points
- 1High-pressure resistant up to 3.5 MPa for robust coolant control.
- 2Air-operated type with solenoid valve for precise control.
- 3Compatible with a wide range of fluids, including coolants and non-corrosive fluids.
- 4Designed for machine tool applications, ensuring efficient coolant management.
- 5Includes a surge suppressor option for enhanced reliability and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | CVSE3 | Port size | 50A: Rc2 |
Working pressure range | 35: 0 to 3.5 MPa | Body/sealant combination | 0: Standard, cast iron (plating) body, nitrile rubber sealant |
Coil | 2G: Option, DIN terminal box (Pg9) | Option: Surge suppresor | Blank: No option |
Option: Solenoid valve on the top | Blank: None | Option: Mounting plate | Blank: No options |
Assembly direction | Blank: No options | Voltage | 1: 100V AC (50/60Hz), 110V AC (60Hz) |
Position of Pg9 | — | A | 140mm |
B | 76mm | C | -mm |
CA | 135mm | CC | 75mm |
D | 314mm | E | 366mm |
F | 176mm | G | Rc2 |
H | 124mm | J | M16 depth 35 |
K | 96 | L | -mm |
M | -mm | N | 123mm |
P | -mm | Q | -mm |
R | -mm | S | -mm |
T | -mm | U | -mm |
Specifications may be subject to change without notice
