Product Model

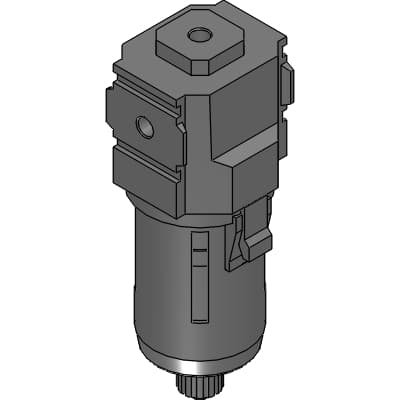

DT3000-10-W
Selling Points
- 1Lightweight and compact design for easy installation.
- 2Snap mechanism enhances durability and enables manual discharge.
- 3Applicable for compressors ranging from 0.75 kW to 75 kW.
- 4Operating ambient temperature range: 5°C to 60°C (41°F to 140°F).
- 5Proof pressure: 1.5 MPa (220 psi, 15 bar) for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | DT3000 : NO type automatic drain | Port size | 10 : 3/8 |
Port thread type | Blank : Rc thread | Option | Blank : Polycarbonate bowl |
Option2 | Blank : Pipe plug assembly | Attachment | Blank : Not attached |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/359/DT3000-W%E3%83%BBDT4000-W?t=list&cid=74&sid=0 |
Specifications may be subject to change without notice
