CKD CorporationSpeed control valves, metering valves
Product Model

DVL-S-10-H88-400

Manufacturer

CKD Corporation

Category

Speed control valves, metering valves

Product ID

51540

In Stock
Last updated: 2025/4/25
View Specifications

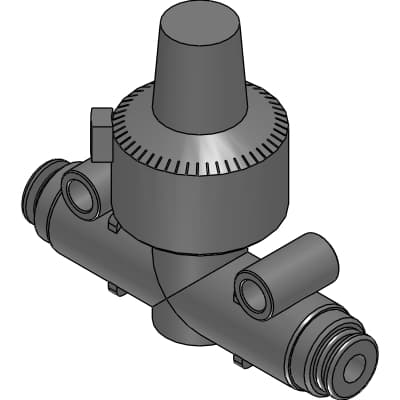

CKD Corporation DVL-S-10-H88-400

Selling Points

  • 1High flow rate of 440L/min for efficient fluid management.
  • 2Adjustable dial for precise control over needle valve operation.
  • 3Integrated check valve ensures reliable fluid flow and prevents backflow.
  • 4Compact design with port size of 8mm, suitable for various industrial settings.
  • 5Reliable performance in managing high-pressure fluid systems.
Product Details
DVL-S-10-H88-400
CKD Corporation

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Model no.
DVL
Control method (oil removing)
S: Check valve type
Body size
10: 3/8 thread equivalent
Applicable tube O.D.
H88: φ8
Flow rate type
400: 400 l/min (ANR)
A
58.0mm
B
29.0mm
C
15.0mm
D
11.5mm
E
15.1mm
F
71.0mm
H
20.0mm
J
23.0mm
K
47.0mm
tube insert length
19.0mm

Specifications may be subject to change without notice
