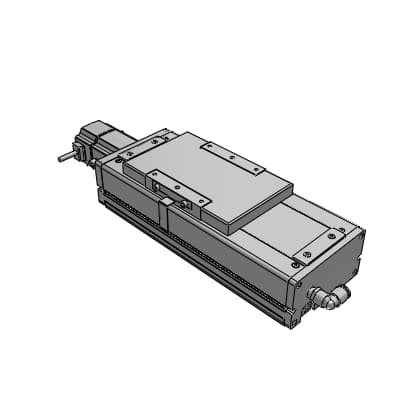

Product Model
ECS-14-05005-EM2NNNNN
Selling Points
- 1High Rigidity: Equipped with two built-in linear guides for excellent rigidity.
- 2Low Dust Generation: Achieved with a full cover structure and suction port, ideal for clean environments.
- 3Versatile Motor Mounting: Compatible with various motors including servo and stepping motors.
- 4Wide Stroke Range: Available in strokes from 50 to 1500mm to suit diverse application needs.
- 5Easy Maintenance: Optional grease nipple for direct external maintenance of guides and ball screws.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ECS | Body size | 14 |
Screw lead | 05 : 5mm | Stroke length | 005 : 50mm |
POS | 0mm | Motor mounting method | E: Straight mounting |
Motor specifications | M : MITSUBISHI | Motor capacity | 2 : 200W |
Brake | N : None | Origin sensor | N : None |
Limit Sensor | N : None | Option | N : Body installation direction Standard/Without grease nipple |
Option 2 | N : Without positioning pin hole | L | 347mm |
A | 200mm | M | 0 |
N | 4 | P | 200mm |
Weight | 10.5kg |
Specifications may be subject to change without notice
