Product Model

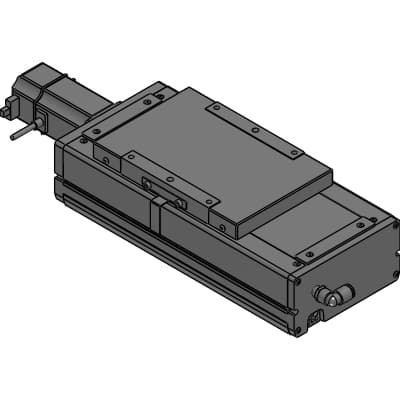

ECS-17-05005-EM4NNNNN
Selling Points
- 1High-speed operation up to 2000mm/s for efficient conveyance.
- 2Low-dust generation with a full cover structure and suction port for clean environments.
- 3Compatible with multiple motor types, including servo and stepping motors, for versatile control.
- 4Easy maintenance with an optional grease nipple for direct lubrication of guides and ball screws.
- 5Available in various body widths (170mm) to fit different equipment spaces, ensuring optimal performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ECS | Body size | 17 |
Screw lead | 05 : 5mm | Stroke length | 005 : 50mm |
POS | 0mm | Motor mounting method | E: Straight mounting |
Motor specifications | M : MITSUBISHI | Motor capacity | 4 : 400W |
Brake | N : None | Origin sensor | N : None |
Limit Sensor | N : None | Option | N : Body installation direction Standard/Without grease nipple |
Option 2 | N : Without positioning pin hole | L | 382mm |
A | 200mm | M | 0 |
N | 4 | P | 200mm |
Weight | 12.0kg |
Specifications may be subject to change without notice
