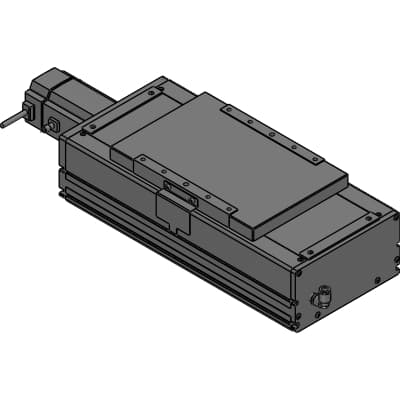

Product Model
ECS-22-05005-EM8NNNNN
Selling Points
- 1High Rigidity: Equipped with two built-in linear guides for excellent rigidity and stability.
- 2Low Dust Generation: Designed with a full cover structure and suction port to minimize dust, ideal for clean environments.
- 3Versatile Motor Compatibility: Compatible with 12 servo motors and three stepping motors, ensuring easy integration with existing systems.
- 4Fast Speed: Achieves a maximum speed of 2000mm/s, enhancing productivity in industrial applications.
- 5Easy Maintenance: Features an optional grease nipple for direct maintenance of guides and ball screws, reducing downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ECS | Body size | 22 |
Screw lead | 05 : 5mm | Stroke length | 005 : 50mm |
POS | 0mm | Motor mounting method | E: Straight mounting |
Motor specifications | M : MITSUBISHI | Motor capacity | 8 : 750W |
Brake | N : None | Origin sensor | N : None |
Limit Sensor | N : None | Option | N : Body installation direction Standard/Without grease nipple |
Option 2 | N : Without positioning pin hole | L | 494mm |
A | 50mm | M | 1 |
N | 6 | P | 250mm |
Weight | 27.5kg |
Specifications may be subject to change without notice
