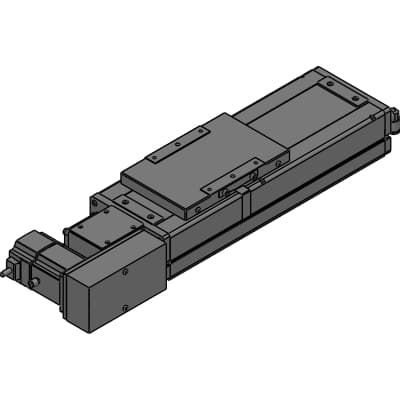

Product Model
ECV-14-40010-RM2XNNNN
Selling Points
- 1Low-Dust Generation: Achieves low dust generation with a full cover structure and suction port, ideal for clean environments.
- 2Extensive Motor Mounting: Supports all Field Networks and offers 5 types of motor mounting directions for versatile installation.
- 3High-Speed Performance: Operates at a maximum speed of 2000mm/s, suitable for demanding applications.
- 4Rigidity and Stability: Equipped with two built-in linear guides for excellent rigidity and stability.
- 5Versatile Applications: Compatible with various industries including conveyance, assembly, sterilization, and packaging.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Body size | 14 : 135 (W) x 91 (H)mm | Lead | 40 : 40 mm |
Stroke length | 010 : 100 mm | Position of slider | 0mm |
Motor mounting method | R : Right | Mounting motor specifications | M : MITSUBISHI, Delta Electronics,Inc., SANYO DENKI CO.,LTD. |
Motor size | 2 : 200 WW | Belt type | X : Standard (rubber) |
Origin sensor | N: None | Limit sensor | N : None |
Option 1 | N : Body mounting direction: standard/without grease nipple | Option 2 | N : Without positioning pin hole |
L | 488mm | A | 50mm |
M | 1 | N | 6 |
Specifications may be subject to change without notice
