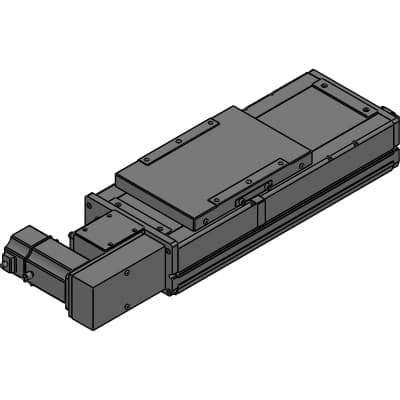

Product Model
ECV-17-40010-RM4XNNNN
Selling Points
- 1Achieves low dust generation with a full cover structure and suction port, ideal for clean delivery applications.
- 2Equipped with two built-in linear guides for excellent rigidity and stability.
- 3Compatible with long strokes up to 3500mm, not fully supported by ball screw drives.
- 4Supports all Field Networks and offers five types of motor mounting directions for flexible installation.
- 5Operates at a maximum speed of 2000mm/s, suitable for high-speed applications in industries like conveyance and assembly.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Body size | 17 : 170 (W) x 107 (H)mm | Lead | 40 : 40 mm |
Stroke length | 010 : 100 mmmm | Position of slider | 0mm |
Motor mounting method | R : Right | Mounting motor specifications | M : Mitsubishi |
Motor size | 4 : 400 WW | Belt type | X : Standard (rubber) |
Origin sensor | N : None | Limit sensor | N : None |
Option 1 | N : Body mounting direction: standard/without grease nipple | Option 2 | N : Without positioning pin hole |
L | 516mm | A | 50mm |
M | 1mm | N | 6mm |
Specifications may be subject to change without notice
