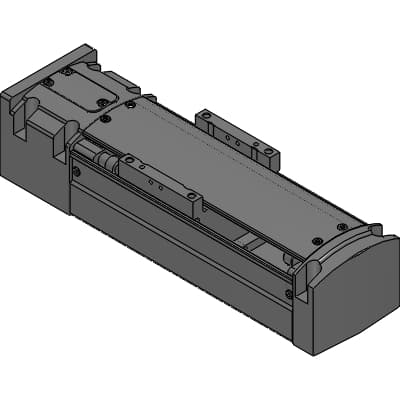

Product Model
ESA-06LE-050050NNN-M1NNNN
Selling Points
- 1Achieve speeds of up to 1000 mm/s for rapid and efficient operation.
- 2Easy installation with direct motor mounting for streamlined setup.
- 3Equipped with origin and limit sensors for precise positioning and control.
- 4Available in various stroke lengths (50 mm, 200 mm, 600 mm) to suit diverse applications.
- 5Built with robust components for long travel life and reliable operation over 5000 km.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | ESA | Body size | 06 : Body width 70mm |
Motorless | L : Motorless | Motor mounting direction | E : Direct mounting |
Screw Lead | 05 : Screw lead 5mm | Stroke length | 0050 : Stroke length: 50mm |
Position of slider | 0mm | N | N : None |
NN | NN : None | Motor type | M |
Motor capacity | 1 | Sensor specification | NN : None |
Origin sensor | N : None | Limit sensor | N : None |
Infotext | ckd_cn/electric_actuator/esa_series/esa_en_0116.pdf | Body length | 255mm |
Full length | -mm | L2 | 227mm |
A | 208mm | B | 150mm |
C | 227mm | C' | 28mm |
M | 5 | P | 12 |
Weight | 3.1kg |
Specifications may be subject to change without notice
