Product Model

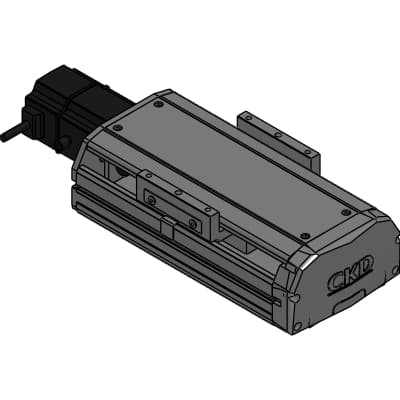

ETS-13-05005-EM2NNNNN
Selling Points
- 1Motorless Design: Install and control motors from any manufacturer.
- 2High Speed: Achieve speeds of up to 1000mm/s.
- 3Multi-Axis Support: Available in single-axis and multi-axis variations.
- 4Easy Maintenance: Optional grease nipple for external lubrication.
- 5Versatile Mounting: Supports 13 servo motors and 3 stepping motors with various mounting directions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ETS | Body size | 13 |
Screw lead | 05 : 5 mm | Stroke length | 005 : 50 mm |
POS | 0mm | Motor mounting method | E : Direct mounting |
Motor manufacturer for installation | M : MITSUBISHI | Motor size | 2 : 200 W |
Brake | N : None | Origin sensor | N : None |
Limit Sensor | N : None | Option 1 | N : Body mounting direction standard/without grease nipple |
Option 2 | N : Without positioning pin hole | L | 275.500mm |
AA | 200.000mm | M | 0.000 |
N | 4.000 | P | 200.000mm |
Specifications may be subject to change without notice
