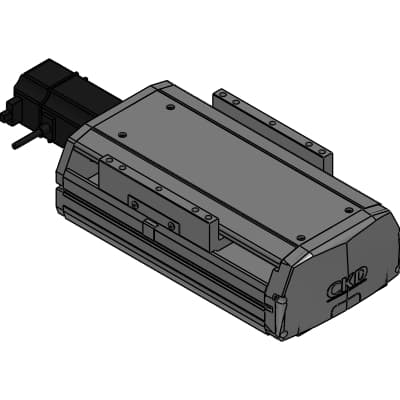

Product Model
ETS-17-05005-EM4NNNNN
Selling Points
- 1High Rigidity: The ETS-17 features ball screw drive with two built-in linear guides for excellent rigidity.
- 2Versatile Motor Mounting: Supports a wide range of motor types, including servo and stepping motors, with five types of motor mounting directions available.
- 3Easy Maintenance: Includes an optional grease nipple for direct external lubrication, reducing guide and ball screw maintenance.
- 4Multi-Axis Capability: Available in four multi-axis specifications, including X-Y and X-Z axis combinations, reducing man-hours for multi-axis design.
- 5Heavy Payload Support: Capable of handling heavy payloads up to 120kg horizontally and 50kg vertically, making it suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ETS | Body size | 17 |
Screw lead | 05 : 5 mm | Stroke length | 005 : 50 mm |
POS | 0mm | Motor mounting method | E : Direct mounting |
Mounted motor specifications | M : MITSUBISHI | Motor size | 4 : 400 W |
Brake | N : None | Origin sensor | N : None |
Limit Sensor | N : None | Option 1 | N : Body mounting direction standard/without grease nipple |
Option 2 | N : Without positioning pin hole | L | 317.000mm |
AA | 200.000mm | M | 0.000 |
N | 4.000 | P | 200 |
Specifications may be subject to change without notice
