Product Model

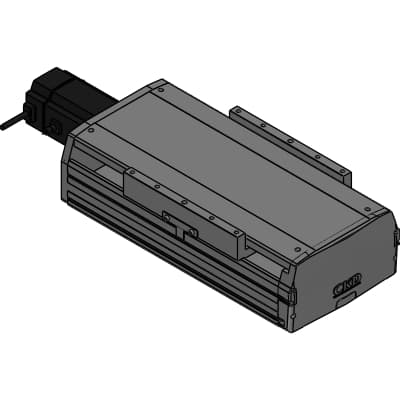

ETS-22-05005-EM8NNNNN
Selling Points
- 1High Rigidity: Equipped with two built-in linear guides for excellent rigidity.
- 2Versatile Motor Mounting: Supports direct mounting of various motors, including Mitsubishi.
- 3High Speed: Achieves a maximum speed of 2000mm/s.
- 4Multi-Axis Capability: Available in four types of multi-axis specifications, including X-Y and X-Z axes.
- 5Easy Maintenance: Optional grease nipple for direct maintenance without decomposing the body.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ETS | Body size | 22 |
Screw lead | 05 : 5 mm | Stroke length | 005 : 50 mm |
POS | 0mm | Motor mounting method | E : Direct mounting |
Mounted motor specifications | M : MITSUBISHI | Motor capacity | 8 : 750 W |
Brake | N : None | Origin sensor | N : None |
Limit Sensor | N : None | Option 1 | N : Body mounting direction standard/without grease nipple |
Option 2 | N : Without positioning pin hole | L | 470.000mm |
AA | 50.000mm | M | 1.000 |
N | 6.000 | P | 250mm |
Specifications may be subject to change without notice
