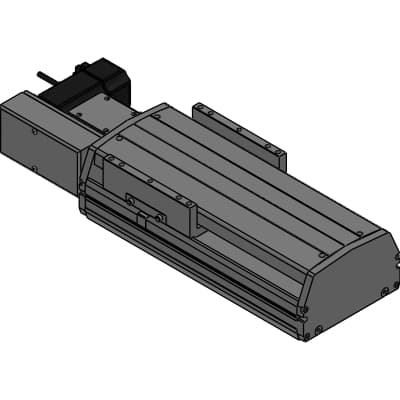

Product Model
ETV-17-40010-RM4XNNNN
Selling Points
- 1High-speed operation up to 2000mm/s.
- 2Motorless design for versatile motor installation.
- 3Compatible with long strokes and belt drive type.
- 4Excellent rigidity with two built-in linear guides.
- 5Easy maintenance with an optional grease nipple.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ETV | Body size | 17 |
Lead | 040 : 40mm | Stroke length | 010 : 100mm |
Position | 0mm | Motor installation methods | R : Right installation |
Installation motor specifications | M : MITSUBISHI | Motor size | 4 : 400W |
Belt type | X : Standard (Rubber) | Origin sensor | N : Without |
Limit sensor | N : Without | Option 1 | N : Body installation direction Standard/Without grease nipple |
Option 2 | N : Without positioning pin hole | L | 469mm |
A | 100mm | M | 1 |
N | 6 | P | 300mm |
Specifications may be subject to change without notice
