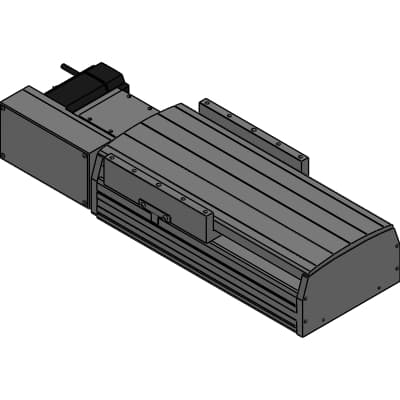

Product Model
ETV-22-40010-RM8XNNNN
Selling Points
- 1High Rigidity: Built with two linear guides for excellent rigidity.
- 2Long Strokes: Supports strokes from 100 to 3500mm.
- 3Motor Compatibility: Allows installation and control of motors from any manufacturer.
- 4Easy Maintenance: Optional grease nipple for simple lubrication without disassembly.
- 5Versatile Applications: Suitable for conveyance, assembly, sterilization (autoclave), packaging, and physicochemical analysis equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | ETV | Body size | 22 |
Lead | 040 : 40mm | Stroke length | 010 : 100mm |
Position | 0mm | Motor installation methods | R : Right installation |
Installation motor specifications | M : MITSUBISHI | Motor size | 8 : 750W |
Belt type | X : Standard (Rubber) | Origin sensor | N : Without |
Limit sensor | N : Without | Option 1 | N : Body installation direction Standard/Without grease nipple |
Option 2 | N : Without positioning pin hole | L | 577mm |
A | 100mm | M | 1 |
N | 6 | P | 300mm |
Specifications may be subject to change without notice
