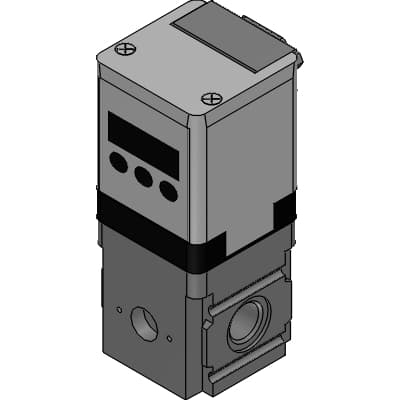

Product Model
EVD-1100-008AN-3
Selling Points
- 1Compact design with 25% smaller footprint compared to other models.
- 2High-function digital control with parallel input type available.
- 3Advanced pressure display and error display functions for precise control.
- 4Direct memory setting allows for flexible adjustment of secondary pressure.
- 5High accuracy and stable control with linearity ±0.3% and hysteresis 0.5%.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | EVD-1 | Pressure specifications | 100 : 100kPa |
Input specifications | 0 : 0-10VDC | Port size | 08 : Rc1/4 |
Output specifications | AN : 1-5V analog, error (NPN) | Cable option | Blank : None |
Attachment bracket type | Blank : None | Power voltage | 3 : 24VDC |
Position of D sub-connector | 0 |
Specifications may be subject to change without notice
