Product Model

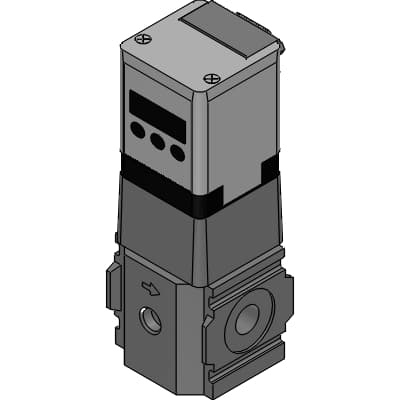

EVD-3100-008AN-3
Selling Points
- 1Achieve accurate pressure control with a range of 0 to 100 kPa, 0 to 500 kPa, or 0 to 900 kPa.
- 2Seamlessly integrate with IO-Link for enhanced data transmission and control.
- 3Built with durable materials and designed for reliability in harsh industrial environments.
- 4Operates efficiently with a current consumption of 0.15 A or less.
- 5Available in Rc1/4, Rc3/8, G1/4, G3/8, NPT1/4, and NPT3/8 port sizes for flexible installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Type | EVD-3 | Pressure specifications | 100 : 100kPa |
Input specifications | 0 : 0-10VDC | Port size | 08 : Rc1/4 |
Output specifications | AN : 1-5V analog, error (NPN) | Cable option | Blank : None |
Attachment bracket type | Blank : None | Power voltage | 3 : 24VDC |
Position of D sub-connector | 0 |
Specifications may be subject to change without notice
