Product Model

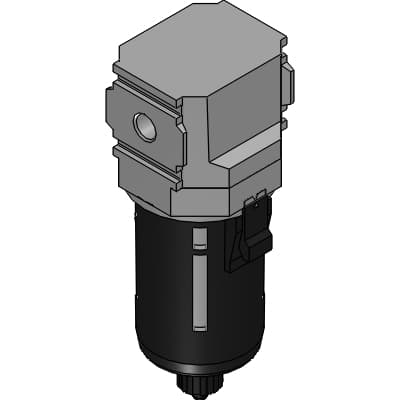

F3000-8-W
Selling Points
- 1Precision Filtration: The F3000-8-W air filter assembly provides precise filtration with a 5μm standard element and an optional 0.3μm submicron element for tar removal.
- 2Auto-Drain System: Equipped with an auto-drain system (F1) that includes manual override, ensuring efficient fluid management.
- 3NSF H1 Compliance: Meets NSF H1 standards, making it suitable for food manufacturing processes where food-grade lubricants are used.
- 4Long Service Life: Features CKD's original chemical fiber structure (patent pending) for reduced clogging and extended element life.
- 5Standard Flow Direction: Designed with standard flow direction (left to right) and Rc thread compatibility for easy integration into various pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | F3000 | Port size | 8 : 1/4 |
Port thread type | Blank : Rc thread | Drainage | Blank :With manual drain cock |
Bowl material | Blank : Polycarbonate bowl | Element | Blank : 5μm |
Differential pressure detection | Blank : Without differential pressure detection port | Flow direction | Blank : Standard flow (left to right) |
Displayed unit | Blank : MPa display, Rc thread | Piping adaptor set (included) | Blank : Not attached |
* Adaptor thread type | Blank : None | Attachment bracket type | Blank : Not attached |
Infotext | https://www.ckd.co.jp/kiki/en/product/detail/42/F%E2%80%BB000?t=list&cid=68&sid=0 |
Specifications may be subject to change without notice
