Product Model

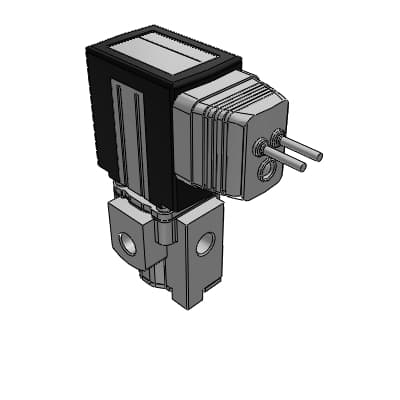

FFG-2106A1A3A1
Selling Points
- 1Highly durable direct acting solenoid valve for dry air and inert gases.
- 2Compact design with space-saving features, ideal for manifold integration.
- 3Operable in dry air at atmospheric dew points of -60°C and inert gases like nitrogen.
- 4Enhanced durability with coil rectification and countermeasures for wear on the sliding section.
- 5Compatible with various port sizes, including Rc1/8, Rc1/4, and Rc3/8.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | FFG | Valve size | 2 : Width 24mm |
Function | 1 : Universal | Port size | 06 : 1/8 |
Thread and pressure display unit on nameplate | A : Rc thread, MPa | Orifice diametar | 1 : φ1 |
Material (Body, Seal, Treatment, Remarks) | A : Aluminium, NBR, －, Compressed air/dry air | Coil Heat Resistant Class | 3 : Class 130 (B) |
Coil options | A : Lead wire (300mm) | Angle of coil options | 0° |
Angle of DIN terminal box | 0° | Angle of HP terminal box | 0° |
Rated Voltage | 1 : 100 VAC 50/60Hz | Option | Blank : None |
Mounting plate direction | Blank : None |
Specifications may be subject to change without notice
