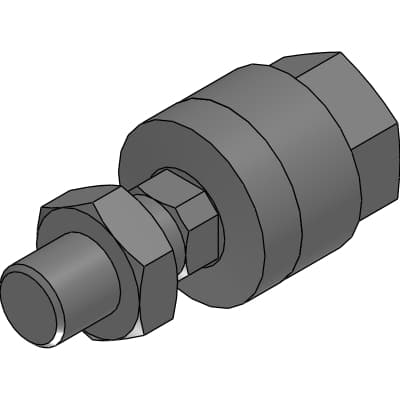

Product Model
FJ-0-12
Selling Points
- No selling points available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | FJ | Mounting | 0: Basic type |
Nominal thread size | 12 | Nominal port size of thread x pitch | M12x1.5 |
Applicable model | CMA2 / CMK2 / CKV2-40 / JSK2 / JSM2-40 | Product information | Product information |
ORDER | FJ-0-12 | Nominal port size | 12mm |
Pitch | 1.50mm | A | 58.0mm |
B | 20.5mm | C | 23.0mm |
D | 27.0mm | E | 6.0mm |
F | 19.0mm | G | 10.0mm |
H | 21.0mm | J | 12.0mm |
K | -mm | L | -mm |
N | 7.0mm | P | 11.8mm |
Q | -mm | S | -mm |
R | -mm | Allowable eccentricity | 0.75mm |
Max. working tension and compression | 2.45kN | Weight | 0.12kg |
Specifications may be subject to change without notice
