Product Model

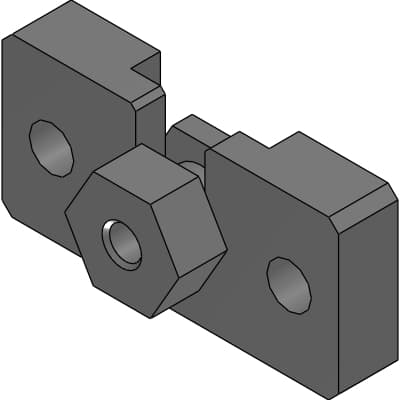

FK-M5
Selling Points
- 1Precision Alignment: Achieve precise alignment with the FK-M5's adjustable eccentricity (0.3 mm).
- 2Versatile Configurations: Compatible with M3 to M8 threads, suitable for a wide range of industrial connections.
- 3High-Quality Materials: Constructed from durable brass, ensuring long-lasting performance and resistance to corrosive gases and dust.
- 4Easy Installation: Simple push-to-connect fittings make installation quick and hassle-free.
- 5Customizable Options: Configure to meet specific needs with options for different thread pitches and lengths.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model No. | FK | Nominal thread size | M5 |
Nominal port size of thread x pitch | M5x0.8 | Compatible cylinder | SCPD2-16, CAT-15, SMD2-16, SSD-12-N |
Product information | Product information | ORDER | FK-M5 |
Nominal port size | 5mm | Pitch | 0.80mm |
A | 13.9mm | B | 12mm |
C | -mm | D | 10mm |
E | 3.1mm | F | 2mm |
G | M5x0.8 | H | 8mm |
J | 6mm | K | 3mm |
L | 19mm | M | 16mm |
N | 9mm | O | 26mm |
P | 36mm | Q | 4.5mm |
R | 9.5mm | S | -mm |
Specifications may be subject to change without notice
