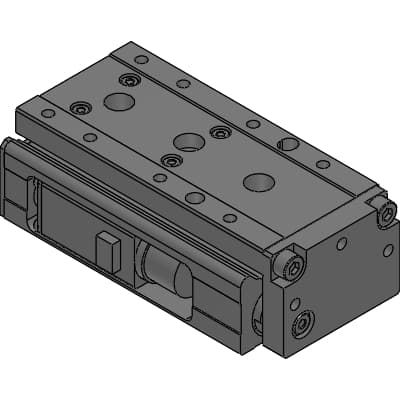

Product Model
FLCR-16G02050NCN-LN00
Selling Points
- 1Built-in motor for space-saving and no projections or folds in the motor assembly.
- 2Enables flexible production with arbitrary adjustments of acceleration/deceleration.
- 3Compatible with pneumatic LCR Series for a compact and pneumatic-like design.
- 4Supports various options including brake, long stroke, and case, improving safety and environmental resistance.
- 5Supports strokes up to 200 mm, suitable for a wide range of applications with high precision positioning capabilities.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Model no. | FLCR | Size | 16 : 16mm |
Applicable controller | G : ECG | Screw lead | 02 : 2mm |
Stroke length | 050 : 50mm | Brake | N : None |
Cable output type/direction | L : Direct outlet - Left | Length of cable | N00 : None |
L1 | 116 | L2 | 103.5 |
n1 | 3 | n2 | 3 |
D | 48 | E | 35.5 |
F | 60 |
Specifications may be subject to change without notice
